NUX B-6 PRO Wireless System
Product Details

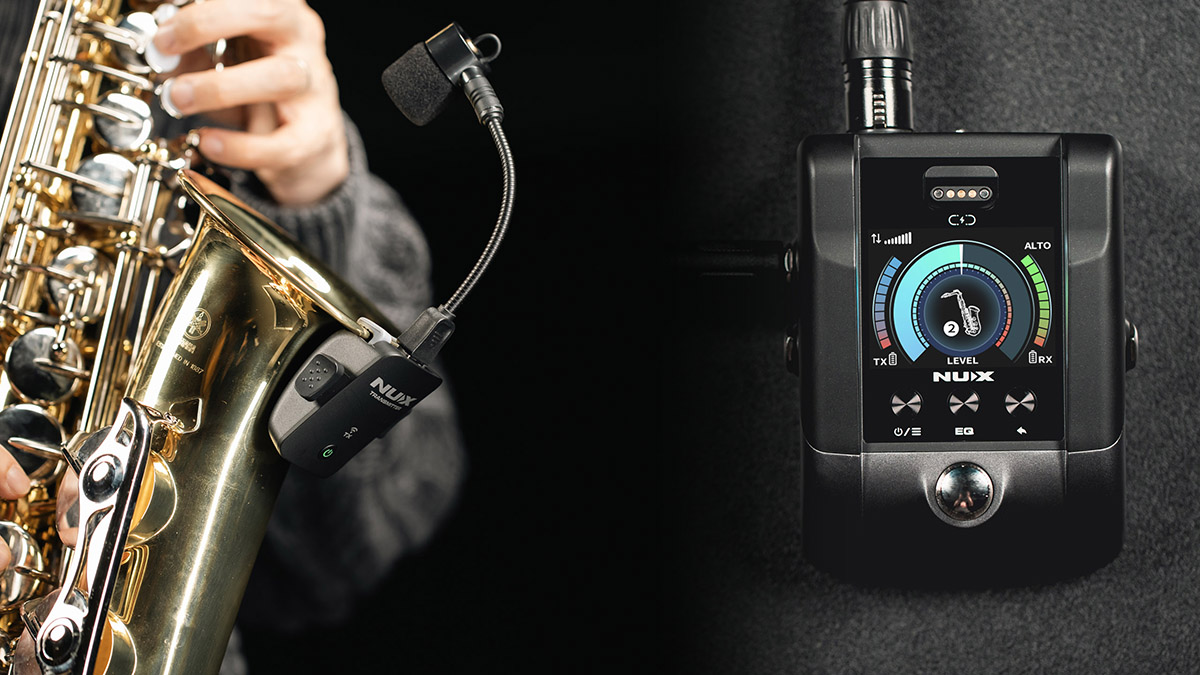

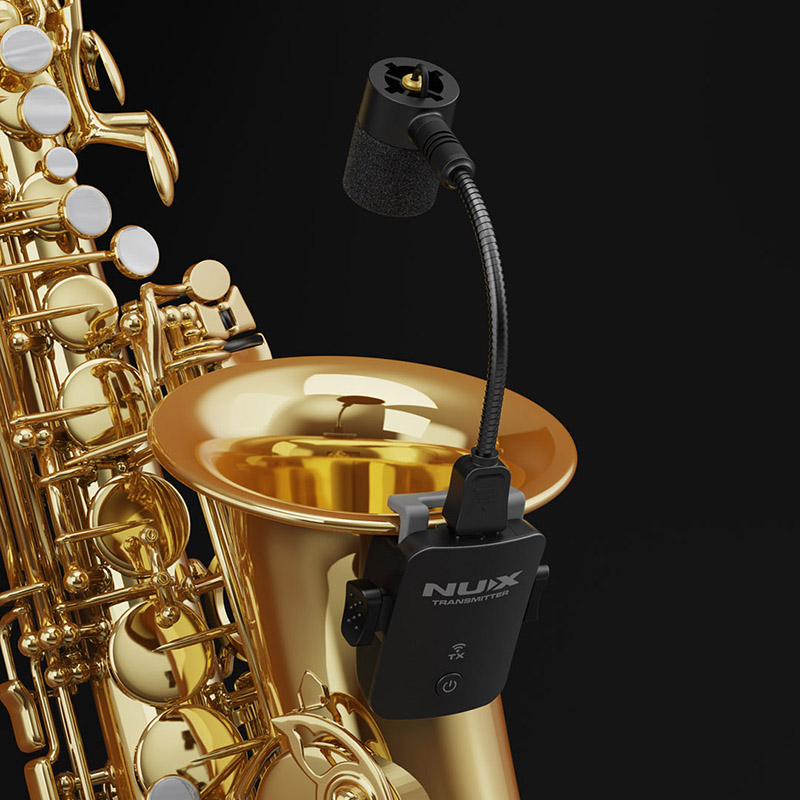

The NUX B-6 Pro Wireless System for Saxophone/Wind Instruments is a professional wireless solution from NUX's Pro Series, designed for saxophones, trumpets, and other brass instruments. The classic NUX B-6 has long been a trusted and popular choice among saxophonists and wind players.

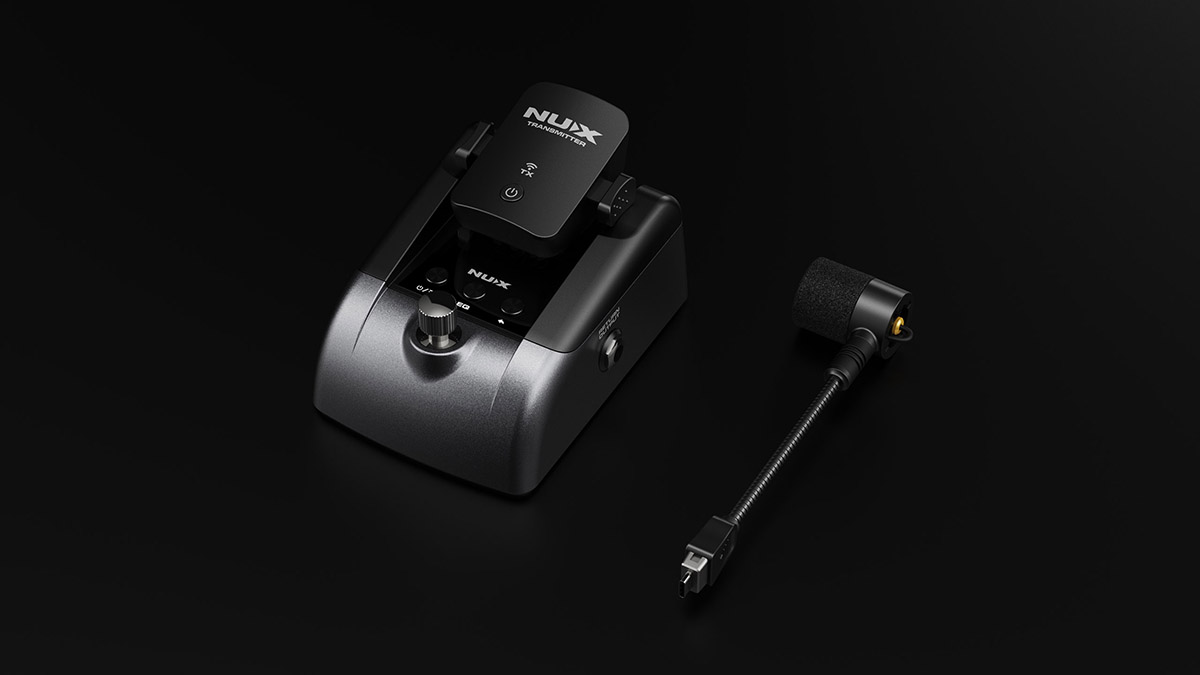

The B-6 Pro upgrades the microphone and suspension structure to improve sound quality, stability, and adding more professional features. Operating on the globally compatible 2.4 GHz band, it supports 24-bit/48 kHz audio, ultra-low latency of just 3.6ms, up to 7 hours battery life, and a 165 ft (50m) range. Its pedal-style receiver with a 2.4-inch display integrates a tuner, boost, FX effects loop, user-customizable EQ and low-cut filter, multiple Pro EQ presets, XLR DI output, and a magnetic charging, providing reliable, convenient, and professional performance for both stage and practice use.
- Specifications
Specifications
Microphone
– Microphone Type: Condenser
– Polar Patterns: Cardioid
– Microphone Sensitivity: -51dB
TX (Transmitter) / RX (Receiver)
– Operating Frequency Band: 2400-2483.5MHz
– RF Output Power: Maximum 10mW E.I.R.P
– Transmission Distance: Up to 165 feet line-of-sight
– Latency: 3.6ms (Low Latency), 6.1ms (Default), 9.9ms (Stable)
– Sampling Depth / Sampling Rate: 24bit/48kHz
– Frequency Response Range: 20Hz-20kHz
– Maximum Audio Signal Output: 6.4dBV (SEND/OUTPUT)
– THD+N: <0.01% (Typical)
– Dynamic Range: 112dBA (SEND/OUTPUT)
– Battery Capacity: TX (transmitter) 3.7V/500mAh, RX (receiver) 3.7V/3000mAh
– Battery Life: TX (transmitter) up to 7 hours, RX (receiver) up to 11 hours
– Power: DC9V, 1A (minimum), negative tip power supplies (Receiver)
– Auto Power Off: Automatic power off after 10 minutes of no wireless connection
– TX (Transmitter) Dimensions (excluding microphone): 61(L)x60(W)x30(H)mm
– TX (Transmitter) Weight (excluding microphone): Approximately 60g
– RX (Receiver) Dimension: 93(L)x120(W)x60(H)mm
– RX (Receiver) Weight: 420g
